TENSITRON ACX-SERIES DIGITAL AIRCRAFT CABLE TENSION METER

От 360 600 ₽ до 390 600 ₽

Арт.	MPN	Описание	Цена
12-03766	ACX-250-FM-1	DIGITAL AIRCRAFT CABLE TENSION METER ACX-250-FM-1	390 600 ₽
12-03759	ACX-250-1	DIGITAL AIRCRAFT CABLE TENSION METER ACX-250-1	360 600 ₽
12-03758	ACX-100-1	TENSITRON ACX-SERIES DIGITAL AIRCRAFT CABLE TENSION METER	360 600 ₽
12-03762	ACX-500-1	DIGITAL AIRCRAFT CABLE TENSION METER ACX-500-1	360 600 ₽

Описание

Tensitron's 5th generation of digital aircraft cable tension meters use the latest technology, software, and design improvements to provide unsurpassed accuracy and resolution for numerous material sizes and tension ranges.

The Model ACX-1 series of Aircraft Cable Tension Meters are designed to precisely measure static tensions in aircraft cables. Indicate values in Lbs, daN or KG in flexible cables with diameters from 1/16” up to 1/4”, CWT cable sizes from 5 to 25 and metric cables from 2.0mm to 4.0mm. Directly read tension from 5 to 1200 pounds (depending on model). Calibrations for 7/32” and other cable sizes can be added to the cable selection menu upon request.

Attention: Tensitron products may not be cancelled or returned.

Features

Feature	ACX-1 New Model
Display	Large, easy-to-read Color Display
Data Logging	Standard Feature Numerous entries can be stored for later viewing Data can be serially exported with optional serial communication feature
Tension Range	Define Acceptable Tension Range Amber (Low), Green (Desirable), or Red (High) Bar Graph displays above tension
Memory	--
Custom Calibration	10-point Calibration Feature allows for extremely precise calibrations
Tension Units	Select tension values to display in Lbs, daN or KG
Refresh Rates	Adjustable LCD Refresh Rates - three settings
Information Display	Display shows tension, battery charge level, cable diameter selected and user-stored tension values
Special Calibration	Up to 10 calibrations can be programmed into instrument, and are password protected to provide due diligence against unauthorized changes
Accuracy	Accuracy is +/- 2% full-scale for all menu-selectable calibrations. Accuracy for custom calibrations is material specific.
Analog Output	Analog Output option 0-5 VDC and 4-20 mA with software-definable ending sequences
Serial Output	Serial Output option (connections include DB9 and USB adaptors)
CE Certification	CE Certification
Calibration	Factory calibrated and ready for use right out of the box
Standards	All calibration values traceable to National Standards Calibration Certificate included
Cable Gage	Includes easy-to-use cable diameter gage
Battery	Improved battery & charging system resulting in up to 4X longer battery life
Power Supply	Power supply operates with input voltages from 100 - 240V Includes several interchangeable adaptors for use with European, U.S., Australian, Asian,and other plug configurations
Automatic Shutoff	Automatic shutoff after 10 minutes of non-use
Protective Case	Durable, lightweight carrying case with foam inserts
Availability	All models typically available from stock
Origin	Made in the USA

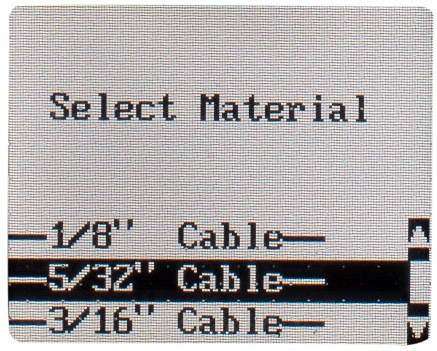

Select the cable size you'll be measuring tension on.

SElect Material Screen

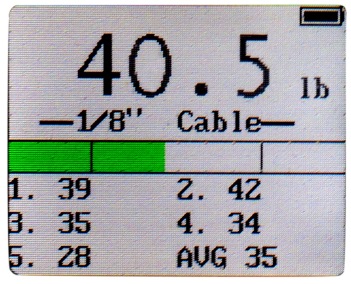

Engage the ACX-1 to your tensioned cable. Take several readings of the cable tension by disengaging and then reengaging the instrument from the cable. The bar graph will display yellow, green, or red to indicate whether tension values are within the desired range. Display will indicate and store up to five separate tension readings plus the average value of thse stored readings.

SElect Material Screen

Model	Range	Resolution	Standard Cable Selections
ACX-100-1	5-100 lbs	0.5 lb	1/16", 3/32", 1/8", 5/32"
ACX-250-1	20-250 lbs	0.5 lb	1/16", 3/32", 1/8", 5/32", 3/16"
ACX-250-M-1	20-250 lbs	0.5 lb	2.0 mm, 2.5 mm, 3.5 mm, 4.0 mm
ACX-500-1	40-500 lbs	1 lb	3/32", 1/8", 5/32", 3/16"
ACX-CWT-1	20-250 lbs	0.5 lb	CWT-5,CWT-10,CWT-15,CWT-20,CWT-25
ACX-CMB-1	20-250 lbs	0.5 lb	1/16",3/32",1/8",5/32", 3/16", CWT-5 thru CWT-25
ACX-CMB-M-1	20-250 lbs	0.5 lb	1/16",3/32",1/8",5/32", 3/16" & 2.0 mm, 2.5 mm, 3.5 mm, 4.0 mm

*Calibrations for 7/32" and for additonal metric-sized cables can be added to the cable selection menu upon request, however cables with diameters larger than 3/16" will only indicate up to approximately 90% of maximum tension range. For example, an instrument scaled for a maximum tension range of 250 lbs will display readings up to approximately 225 lbs on 7/32" diameter cables.

ACX NSN Numbers
Model	NSN No.
ACX-250	6635015972610
ACX-1200-SCB	6635016026324

The ACX-1200-SCB measures up to 1200 lb tension and is calibrated for 3/16", 7x19 cable. Accuracy is 3% full-scale. Other custom calibrations can be added upon request.

Documents

12-03758manual.pdf

TensitronACXtds.pdf

acx250.pdf

acx500.pdf

Отзывы Оставить отзыв

Отзывы ещё не добавлены

Вопросы и ответы

What are the dimensions of these Tensitron ACX-Series digital tensiometers?

We have added a "Dimensions" tab to the webpage. You can review them there. We have also added more detailed PDF dimenions which you can find in the "Documents" tab.

Is this Tensitron ACX-Series comes calibrated? with a Certificate of calibration?

It does come with a certificate of calibration in the box.
