ULTRA MINIATURE TOGGLE SWITCHES

От 3 597 ₽ до 8 985 ₽

Арт.	MPN	Описание	Цена
11-04231	MTA-106D	ULTRA MINIATURE TOGGLE SWITCHES	3 597 ₽
11-04235	MTA-206P	ULTRA-MINI TOGGLE SWITCH MTA-206P	4 650 ₽
11-04238		TE ALCOSWITCH MTA604N TOGGLE	7 950 ₽
11-04234	MTA206N	TE TOGGLE SWITCH MTA206N	5 925 ₽
11-04237	A323S1YZQ	ULTRA-MINI. TOGGLE SWITCHES MTA-306D	8 985 ₽
11-04233	MTA-106G	TE ALCOSWITCH TOGGLE SPDT MTA106G	5 895 ₽
11-04207	MTA-206R	ULTRA-MINI MTA-206R TOGGLE	7 350 ₽
11-04232	MTA-106E	MINI TOGGLE SWITCH # MTA-106E	4 050 ₽
11-04236	MTA206S	TE ALCOSWITCH DOUBLE POLE DOUBLE THROW MTA206S	6 795 ₽

Описание

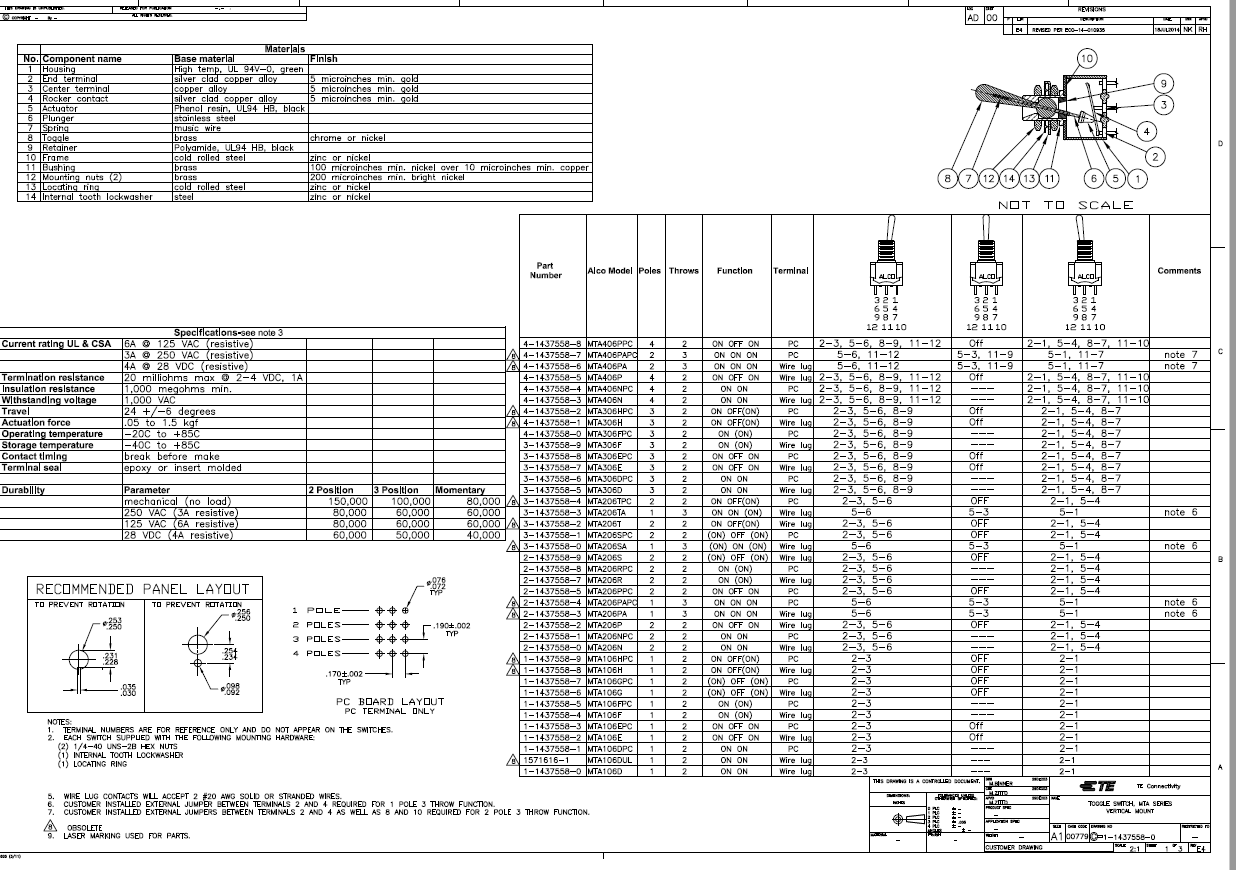

Ultra-miniature switches are rated at 6 amps at 125V AC and 4 amps at 28V DC. Solid silver contacts. Terminals are gold flashed to inhibit oxidation and to provide easier soldering.

Case material is green diallyl phthalate resin. Bushing thread size: 1/4-40, usable in panel thickness up to 1/4". Micro Switch Co. have discontinued the manufacture of the 8A and 8H type switches, so switches by alternate manufacturers will be furnished. In most instances, Alco switches will be supplied. Switches furnished complete with locking ring and attaching hardware

*See Toggle Circuit Table

Features

Toggle Circuit Table

Toggle Circuit	Circuitry*
Toggle Circuit	One Side	Center	Other Side
01	On	None	On
02	On	Off	On
04	(On)	Off	(On)
05	On	Off	(On)
06	On	None	(On)
*Use the "01" circuitry for On-Off switch. In hook-up, use center terminal and one side terminal. Leave other side terminal blank.

Eligibilities

Lever/Circuit Relationship

LEVER/CIRCUIT RELATIONSHIP
	The operating sequence above is repeated in multipole devices. Each pole has double-throw circuitry and consists of three terminals which exit at the bottom of the switch case. The keyway is a helpful reference when you are applying a switch with the momentary (ON) circuit at one of the extreme lever positions.

Documents


Отзывы Оставить отзыв

Отзывы ещё не добавлены

Вопросы и ответы

I just need a micro to switch between nav 1 and nav 2. I'm assuming I need the on/on, what's the difference in the only two you offer

The difference is the ability to turn both Nav's off. You do not want this feature to cause accidents so part number 11-04231 will be best for your situation.

What are the switch case dimensions of part # 11-04231: Length, width, depth?

Approximate dimensions of case: 1/2" Length x 5/16" Width x 3/8" Height

The circuitry shows on-off-on and on-none-on. What does the none mean. Im looking for a on-both-on switch.

None means that there is no position. For example, if the switch is on-none-on, it will have no center position. It toggles from on to on.

What size wire terminals are used for these switches?

Per the manufacturer the size is .039 x .078
